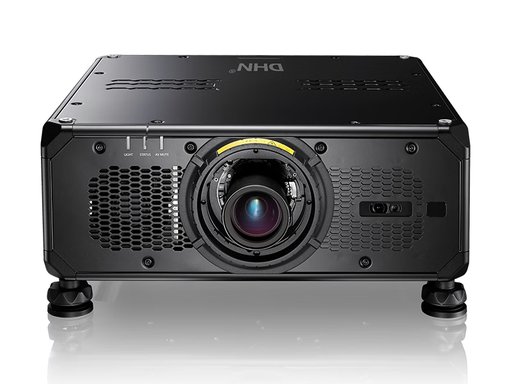

DHN (Diheng) DU24KP 24,500 Lumens Dual-Color Laser Engineering Projector

Main Specifications:

Brand: DHN (Diheng)

Model: DU24KP

Projection Technology: 3LCD

Display Chip: 3×1.0" LCD Chips

Resolution: WUXGA (1920×1200)

Center Brightness: 24,500 Lumens

ISO Brightness: 22,900 ISO Lumens

Contrast Ratio: 6,000,000:1

Light Source: Dual-Color Laser (Blue + Red)

Light Source Lifespan: Standard Mode 20,000 hours, Eco Mode 30,000 hours

Projection Lens: Motorized Lens

Interchangeable Lens: Supported

Optional Lens Throw Ratio: 1.24-2.01 (Standard Lens); 0.53-0.65 / 0.65-0.8 / 0.67 / 0.86-1.25 / 1.96-3.95 / 0.95-1.75 / 1.62 / 0.78 / 3.5-6.3 / 0.52 / 0.2 / 1.3-3.4 / 3.4-5.5 / 0.72 / 1.19-1.62 / 1.57-2.56

Keystone Correction: Vertical ±30°, Horizontal ±30°

Image Correction: Curved Surface Correction, 6-Point Correction, 11×17 Multi-Point Correction

Aspect Ratio: 16:10 (Adjustable)

Signal Scanning Frequency: Horizontal 15-100KHz, Vertical 24-85Hz

Projection Features: Dual HDMI Backup Design with HDMI Daisy Chain Loop

Interface Parameters:

Input Interfaces: VGA×1, USB-B×1, DVI-D×1, HDMI 1.4(IN)×2, HD BaseT×1, USB-A×1, Audio in×1

Output Interfaces: HDMI 1.4(OUT)×1, Audio out×1

Control Interfaces: RJ45×1, DMX512×1, RS232 IN×1, RS232 OUT×1, Wired Remote IN×1, Wired Remote out×1

Electrical Parameters:

Power Consumption: 1400W (Normal Max), 1155W (Eco1 Max), 795W (Eco2 Max)

Standby Power Consumption: <0.5W (Standby Mode)

Other Parameters:

Product Dimensions (W×D×H mm): 655×311×558 mm

Net Weight (KG): 38.7kg

Gross Weight (KG): 46kg
