Key Specifications:

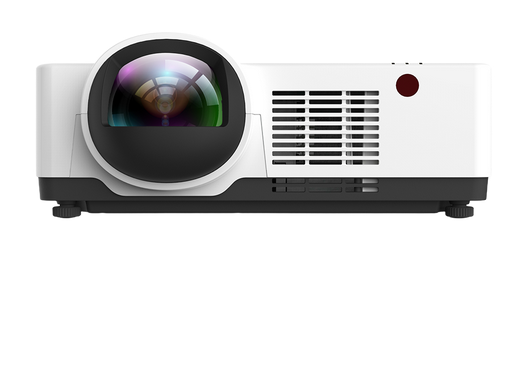

Brand: DHN
Model: DU530UST (Beidou Series)
Projection Technology: 3LCD + MCL Laser Light Source
Display Chip: 3×0.64”
Resolution: WUXGA (1920×1200)
Brightness: 5,300 ISO lumens
Center Brightness: 5,300 lumens (CLO 100%)
Contrast Ratio: 5,000,000:1 (Dynamic)
Light Source: MCL Laser
Light Source Life: 20,000 hours (Normal), 25,000 hours (Eco)
Projection Lens: F1.7, f=2.94mm, Throw Ratio 0.235:1, Ultra-Short Throw
Screen Size: 80–130 inches
Aspect Ratio: Default 16:10, switchable to 4:3 / 16:9
Projection Features: 4-corner / 6-corner geometric correction, 11×17 grid correction, edge blending, 3D, automatic flip for ceiling mounting, USB video transmission, custom startup logo
Keystone Correction: Vertical ±5°, Horizontal ±5°
Output Formats:
Computer Signal Inputs: VGA/SVGA/XGA/SXGA/WXGA/UXGA/WUXGA/4K@30Hz
Video Signal Inputs: 480i/480p/576i/576p/720p/1080i/1080p
Audio: Built-in 16W × 1 speaker
Interface Specifications:
Input Interfaces: VGA × 1, HDMI 1.4B × 2, USB-A × 1, USB-B (Display) × 1, RJ45 (Display) × 1
Output Interfaces: VGA × 1, Audio Out (3.5mm headphone jack) × 1
Control Ports: RS232 × 1, RJ45 (Control) × 1, USB-B (Upgrade) × 1
LAN Control:
LAN Control - RoomView (Crestron): Supported
LAN Control - AMX Discovery: Supported
LAN Control - PJ Link: Supported
Power Specifications:
Voltage/Current: 100–240V @ 50/60Hz
Power Consumption (Normal) (Max): 360W
Power Consumption (ECO1) (Max): 280W
Power Consumption (ECO2) (Max): 230W
Standby Mode: <0.5W
Environmental Parameters: 0°C–40°C
Operating Temperature:
Operating Humidity: 20%–80% (non-condensing)
Storage Temperature: -10°C to 60°C
Altitude: 0–3000 m
Other Specifications:
Scan Frequency: Horizontal 15–100 kHz, Vertical 24–85 Hz
Product Dimensions (WxDxH mm): 520×435×168
Net Weight (kg): 11 kg
Packaging Dimensions (WxDxH mm): 610 × 526 × 266
Gross Weight (kg): 13.5 kg
Languages: 26 languages
Noise Level: 37 dB (Normal), 27 dB (ECO)
Uniformity: ≥80%
