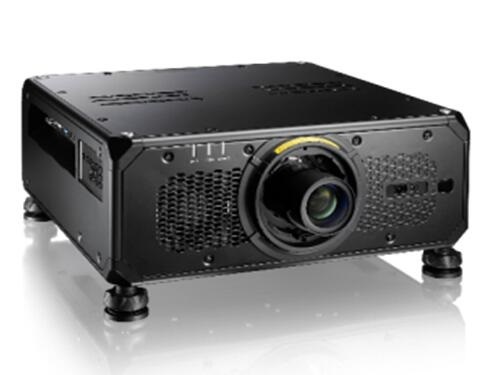

The DHN (Diheng) DU26K is a 26,000 lumens red-blue laser engineering projector.

Main Specifications

Brand: DHN (Diheng)

Model: DU26K

Projection Technology: DLP

Display Chip: 0.96" DMD

Resolution: WUXGA (1920×1200)

Center Brightness: 26,000 Lumens

Contrast Ratio: 500,000:1

Light Source: Red-Blue Laser + Phosphor Technology (Blue Laser + Red Laser + Phosphor Technology)

Light Source Lifespan: 20,000 Hours

Projection Lens: Motorized Lens

Interchangeable Lens: Supported

Lens Shift: Horizontal ±25%, Vertical ±60%

Aspect Ratio: 16:10 (Adjustable)

Projection Features: Supports 2×360° Arbitrary Angle Installation

Uniformity: ≥90%

Interface Parameters:

Input Interfaces: DisplayPort×1, HDMI 2.0×2, DVI-D×1, VGA×1, HDBaseT×1, 3D sync in×1, 3G-SDI in×1

Output Interfaces: HDMI out×1, 3D sync out×1, 12V×1, 3G-SDI out×1

Control Interfaces: RS232 in×1, RS232 out×1, RJ45×1, Wire Remote in×1, Wire Remote out×1, USB A×1

Electrical Parameters:

Voltage / Current: 110-240V ±10%

Power Consumption (Normal) (Max): Full Load 1900W @ 220VAC

Standby Power Consumption: <0.5W

Environmental Parameters:

Operating Temperature: 0-40°C

Storage Temperature: -10°C to 60°C

Other Parameters:

Product Dimensions (W×D×H mm): 682×650×301 mm

Net Weight (KG): ~54KG (Without Lens)

Optional Lens Throw Ratio: 0.56 / 0.62 / 0.65-0.75 / 0.84-1.02 / 0.85-1.45 / 1.02-1.36 / 1.2-1.5 / 1.5-2.0 / 2.0-4.0 / 2.1-3.7 / 3.6-6.3 / 4.0-7.2 / 7.2-10.8
