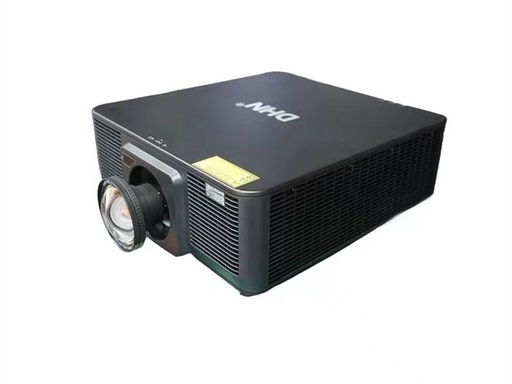

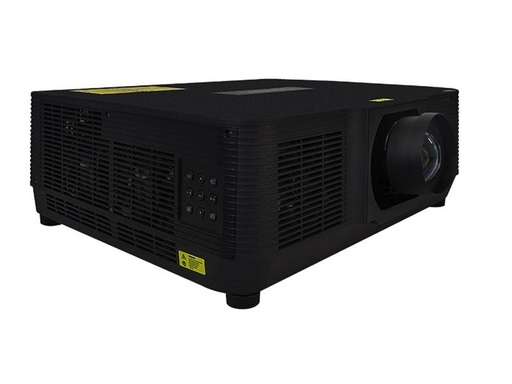

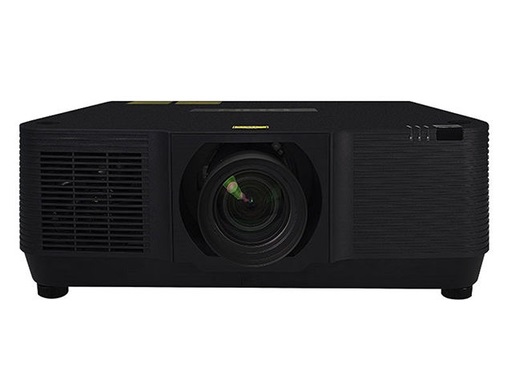

The DHN (Diheng) DU16K is a 15,500 lumens laser engineering projector.

Main Specifications

Brand: DHN (Diheng)

Model: DU16K

Projection Technology: DLP

Display Chip: 0.67" DMD

Resolution: 1920×1200 (16:10), Compatible with 4K Signal Input

Brightness: 15,500 ISO Lumens

Center Brightness: 16,000 Lumens

Contrast Ratio: 50,000:1 (Dynamic), 5,000,000:1 (Extreme Black)

Light Source: MCL Laser Light Source

Light Source Lifespan: Standard Mode 20,000 Hours, Eco Mode 30,000 Hours

Projection Lens: Motorized Lens

Interchangeable Lens: Supported

Aspect Ratio: 16:10 (Native), Compatible with 4K Signal

Projection Features: Supports 4K HDR, 2×360° Projection, HSG Color Adjustment, Geometric Correction, Signal Detection Auto Power-On and Power Detection Auto Power-On Functions

Keystone Correction: Horizontal ±30°, Vertical ±20°

Output Format: Compatible with 4K Signal

Computer Signal Input: HDMI 2.0, HDBaseT, DVI-D

Video Signal Input: 3G-SDI, HDMI 2.0

Interface Parameters:

Input Interfaces: HDMI 2.0×2, HDBaseT×1, DVI-D×1, 3G-SDI×1, 3D-Sync×1

Output Interfaces: HDMI Out×1, 3D-Sync Out×1

Control Interfaces: LAN (RJ45)×1, WIRED IR×1, RS-232×2, 12V OUT×1, 5V/2A USB-A×1

LAN Control:

LAN Control - RoomView (Crestron): Supported

LAN Control - AMX Discovery: Supported

LAN Control - PJ Link: Supported

Electrical Parameters:

Power Consumption (Normal) (Max): 895W ±15% (Max)

Other Parameters:

Product Dimensions (W×D×H mm): 484×532×200

Net Weight (KG): ~21KG

Gross Weight (KG): ~27KG

Noise Level: 40 dB (Standard Mode), 37 dB (ECO Eco Mode)

Geometric Correction: 2×2 / 3×3 / 5×5 / 9×9 / 17×17 Grid Point Correction

Optional Lenses: 0.3 / 0.35-0.39 / 0.36 / 0.48 / 0.5 / 0.63 / 0.65-0.75 / 0.7 / 0.75-0.95 / 0.8 / 0.85-1.35 / 0.85-1.45 / 0.9 / 0.95-1 / 1.22 / 1.2 / 2.0 / 1.22-1.52 / 1.52-2.92 / 2.90-5.50 / 5.0-8.0
